Types of Data Quality Rules

Data quality rules are for protecting data from errors. In this post, we will learn about different data quality rules. In addition, we will look at tools used in connection with data quality rules.

Detective

Detective rules monitor data after it has already moved through a pipeline and is being used by the organization. Detective rules are generally used when the issues that are being detected are not causing a major problem when the issue cannot be solved quickly, and when a limited number of records are affected.

Of course, all of the criteria listed above are relative. In other words, it is up to the organization to determine what thresholds are needed for a data quality rule to be considered a detective rule.

ad

An example of a detective data quality rule may be a student information table that is missing a student’s uniform size. Such information is useful but probably not worthy enough to stop the data from moving to others for use.

Preventative

Preventive data quality rules stop data in the pipeline when issues are found. Preventive rules are used when the data is too important to allow errors, when the problem is easy to fix, and or when the issue is affecting a large number of records. Again, all of these criteria are relative to the organization.

An example of a violation of a data quality prevention rule would be a student records table missing student ID numbers. Generally, such information is needed to identify students and make joins between tables. Therefore, such a problem would need to be fixed immediately.

Thresholds & Anomaly detection

There are several tools for implementing detection and prevention data quality rules. Among the choices are the setting of thresholds and the use of anomaly detection.

Thresholds are actions that are triggered after a certain number of errors occurred. It is totally up to the organization to determine how to set up their thresholds. Common levels include no action, warning, alert, and prevention. Each level must have a minimum number of errors that must occur for this information to be passed on to the user or IT.

To make things more complicated you can tie threshold levels to detective and preventive rules. For example, if a dataset has 5% missing data it might only flag it as a warning threshold. However, if the missing data jumps to 10% it might now be a violation of a preventative rule as the violation has reached the prevention level.

Anomaly detection can be used to find outliers. Unusual records can be flagged for review. For example, a university has an active student who was born in 1920. Such a birthdate is highly unusual and the system should flag it as an outlier by the rule. After reviewing, IT can decide if it is necessary to edit the record. Again, anomaly detection can be used to detect or prevent data errors and can have thresholds set to them as well.

Conclusion

Data quality rules can be developed to monitor the state of data within a system. Once the rules are developed it is important to determine if they are detective or preventative. The main reason for this is that the type of rule affects the urgency with which the problem needs to be addressed.

person in white long sleeve shirt holding credit card

Data Profile

One aspect of the data governance experience is data profiling. In this post we will look at what a data profile is, an example of a simple data profile, and the development of rules that are related to the data profile.

Definition

Data profiling is the process of running descriptive statistics on a dataset to develop insights about the data and field dependencies. Some questions there are commonly asked when performing a data profile includes.

  • How many observations are in the data set?
  •  What are the min and max values of a column(s)?
  •  How many observations have a particular column populated with a value (missing vs non-missing data)?
  •  When one column is populated what other columns are populated?

Data profiling helps you to confirm what you know and do not know about your data. This knowledge will help you to determine issues with your data quality and to develop rules to assess data quality.

Student Records Table

StudentIDStudentFirstNameStudentLastNameStudentBirthDateStudentClassLevel
1001MariaSmith04/04/2000Senior
1002Chang09/12/2004Junior
1003FranciscoBrownJunior
1004MatthewPeter01/01/2005Freshman
1005Martin02/05/2002Sophmore

The first column from the left is the student id. Looking at this column we can see that there are five records with data. That this column is numeric with 4 characters. The minimum value is 1001 and the max value is 1005.

The next two columns are first name and last name. Both of these columns are string text with a min character length of 5 and a max length of 7 for first name and 5 for last name. For both columns, 80% of the records are populated with a value. In addition, 60% of the records have a first name and a last name.

ad

The fourth column is the birthdate. This column has populated records 80% of the time and all rows follow a MM/DD/YYYY format. The minimum value is 04/04/2000 and the max value is 01/01/2005. 40% of the rows have a first name, last name, and birthdate.

Lastly, 100% of the class-level column is populated with values. 20% of the values are senior, 40% are junior, 20% are sophomore, and 20% are freshman.

Developing Data Quality Rules

From the insights derived from the data profile, we can now develop some rules to ensure quality. With any analysis or insight the actual rules will vary from place to place based on needs and context but below are some examples for demonstration purposes.

  • All StudentID values must be 4 numeric characters
  •  The Student ID values must be populated
  •  All StudentFirstName values must be 1-10 characters in length
  •  All StudentLastName values must be 1-10 characters in length
  •  All StudentBirhdate values must be in MM/DD/YYYY format
  •  All StudentClassLevel values must be Freshman, Sophomore,, Junior, or Senior

Conclusion

A data profile can be much more in-depth than the example presented here. However, if you have hundreds of tables and dozens of databases this can be quite a labor-intensive experience. There is software available to help with this but a discussion of that will have to wait for the future.

rows of different lenses for checking eyesight

Data Quality

Bad data leads to bad decisions. However, the question is how can you know if your data is bad. One answer to this question is the use of data quality metrics. In this post, we will look at a definition of data quality as well as metrics of data quality

Definition

Data quality is a measure of the degree that data is appropriate for its intended purpose. In other words, it is the context in which the data is used that determines if it is of high quality. For example, knowing email addresses may be appropriate in one instance but inappropriate in another instance.

ad

When data is determined to be of high quality it helps to encourage trust in the data. Developing this trust is critical for decision-makers to have confidence in the actions they choose to take based on the data that they have. Therefore data quality is of critical importance for an organization and below are several measures of data quality.

Measuring Data Quality

Completeness is a measure of the degree to which expected columns (variables) and rows (observations) are present. There are times when data can be incomplete due to missing data and or missing variables. There can also be data that is partially completed which means that data is present in some columns but not others. There are various tools for finding this type of missing data in whatever language you are using.

Validity is a measure of how appropriate the data is in comparison to what the data is supposed to represent. For example, if there is a column in a dataset that measures the class level of high school students using Freshman, Sophmore, Junior, and Senior. Data would e invalid if it use the numerical values for the grade levels such as 9, 10, 11, and 12. This is only invalid because of the context and the assumptions that are brought to the data quality test.

Uniqueness is a measure of duplicate values. Normally, duplicate values happen along rows in structured data which indicates that the same observation appears twice or more. However, it is possible to have duplicate columns or variables in a dataset. Having duplicate variables can cause confusion and erroneous conclusions in statistical models such as regression.

Consistency is a measure of whether data is the same across all instances. For example, there are times when a dataset is refreshed overnight or whenever. The expectation is that the data should be mostly the same except for the new values. A consistency check would assess this. There are also times when thresholds are put in place such that the data can be a little different based on the parameters that are set.

Timeliness is the availability of the data. For example, if data is supposed to be ready by midnight any data that comes after this time fails the timeliness criteria. Data has to be ready when it is supposed to be. This is critical for real-time applications in which people or applications are waiting for data.

Accuracy is the correctness of the data. The main challenge of this is that there is an assumption that the ground truth is known to make the comparison. If a ground truth is available the data is compared to the truth to determine the accuracy.

Conclusion

The metrics shared here are for helping the analyst to determine the quality of their data. For each of these metrics, there are practical ways to assess them using a variety of tools. With this knowledge, you can be sure of the quality of your data.

man showing distress

Data Governance Solutions

Data governance is good at indicating various problems an organization may have with data. However, finding problems doesn’t help as much as finding solutions does. This post will look at several different data governance solutions that deal with different problems.

Business Glossary

The business glossary contains standard descriptions and definitions. It also can contain business terms or discipline-specific terminology. One of the main benefits of developing a business glossary is creating a common vocabulary within the organization.

Many if not all businesses and fields of study have several different terms that mean the same thing. In addition, people can be careless with terminology, to the confusion of outsiders. Lastly, sometimes a local organization will have its own unique terminology. No matter the case the business dictionary helps everyone within an organization to communicate with one another.

ad

An example of a term in a business dictionary might be how a school defines a student ID number. The dictionary explains what the student ID number is and provides uses of the ID number within the school.

Data Dictionary

The data dictionary provides technical information. Some of the information in the data dictionary can include the location of data, relationships between tables, values, and usage of data. One benefit of the data dictionary is that it promotes consistency and transparency concerning data.

Returning to our student ID number example, a data dictionary would share where the student ID number is stored and the characteristics of this column such as the ID number being 7 digits. For a categorical variable, the data dictionary may explain what values are contained within the variable such as male and female for gender.

Data Catalog

A data catalog is a tool for metadata management. It provides an organized inventory of data within the organization. Benefits of a data catalog include improving efficiency and transparency, quick locating of data, collaboration, and data sharing.

An example of a data catalog would be a document that contains the metadata about several different data warehouses or sources within an organization. If a data analyst is trying to figure out where data on student ID numbers are stored they may start with the data catalog to determine where this data is. The data dictionary will explain the characteristics of the student ID column. Sometimes the data dictionary and catalog can be one document if tracking the data in an organization is not too complicated. The point is that the distinction between these solutions is not obvious and is really up to the organization.

Automated Data Lineage

Data lineage describes how data moves within an organization from production to transformation and finally to loading. Tracking this process is really complicated and time-consuming and many organizations have turned to software to complete this.

The primary benefit of tracking data lineage is increasing the trust and accuracy of the data. If there are any problems in the pipeline, data lineage can help to determine where the errors are creeping into the pipeline.

Data Protection, Privacy, QUailty

Data protection is about securing the data so that it is not tampered with in an unauthorized manner. An example of data protection would be implementing access capabilities such as user roles and passwords.

Data privacy is related to protection and involves making sure that information is restricted to authorized personnel. Thus, this also requires the use of logins and passwords. In addition, classifying the privacy level of data can also help in protecting it. For example, salaries are generally highly confidential while employee work phone numbers are probably not.

Data quality involves checking the health of the accuracy and consistency of the data. Tools for completing this task can include creating KPIs and metrics to measure data quality, developing policies and standards that defined what is good data quality as determined by the organization, and developing reports that share the current quality of data.

Conclusion

The purpose of data governance is to support an organization in maintaining data that is an asset to the organization. In order for data to be an asset it must be maintained so that the insights and decisions that are made from the data are as accurate and clear as possible. The tools described in this post provide some of the ways in which data can be protected within an organization.

my secret plan to rule the world book

Data Governance Strategy

A strategy is a plan of action. Within data governance, it makes sense to ultimately develop a strategy or plan to ensure data governance takes place. In this post, we will look at the components of a data governance strategy. Below are the common components of a data governance strategy.

  • Approach
  •  Vision statement
  •  Mission statement
  •  Value proposition
  •  Guiding principles
  •  Roles & Responsibilities

There is probably no particular order in which these components are completed. However, they tend to follow an inverted pyramid in terms of the scope of what they deal with. In other words, the approach is perhaps the broadest component and affects everything below it followed by the vision statement, etc. Where to begin probably depends on how your mind works. A detail-oriented person may start at the bottom while a big-picture thinker would start at the top.

Defined Approach

The approach defines how the organization will go about data governance. There are two extremes for this and they are defensive and offensive. A defensive approach is focused on risk mitigation while an offensive approach is focused more on achieving organizational goals.

ad

Neither approach is superior to the other and the situation an organization is in will shape which is appropriate. For example, an organization that is struggling with data breaches may choose a more defensive approach while an organization that is thriving with allegations may take a more offensive approach.

Vision Statement

A vision statement is a brief snapshot of where the organization wants to be. Another way to see this is that a vision statement is the purpose of the organization. The vision statement needs to be inspiring and easily understood. It also helps to align the policies and standards that are developed.

An example of a vision statement for data governance is found below.

Transforming how data is leveraged to make informed decisions to support youth served by this organization

The vision is to transform data for decision-making. This is an ongoing process that will continue indefinitely.

Mission Statement

The mission statement explains how an organization will strive toward its vision. Like a vision statement, the mission statement provides guidance in developing policies and standards. The mission statement should be a call to action and include some of the goals the organization has about data. Below is an example

Enabling stakeholders to make data-driven decisions by providing accurate, timely data and insights

In the example above, it is clear that accuracy, timeliness, and insights are the goals for achieving the vision statement. In addition, the audience is identified which is the stakeholders within the organization.

Value Proposition

The value proposition provides a justification or the significance of adopting a data governance strategy. Another way to look at this is an emphasis on persuasion. Some of the ideas included in the value proposition are the benefits of implementation. Often the value proposition is written in the form of cause and effect statement(s). Below is an example

By implementing this data governance program we will see the following benefits:

Improved data quality for actionable insights, increased trust in data for making decisions, and clarity of roles and responsibilities of analysts

In the example above three clear benefits are shared. Succinctly this provides people with the potential outcomes of adopting this strategy. Naturally, it would be beneficial to develop ways to measure these ideas which means that only benefits that can be measured should be a part of the value proposition.

Guiding Principles

Guiding principles define how data should be used and managed. Common principles include transparency, accountability, integrity, and collaboration. These principles are just more concrete information for shaping policies and standards. Below is an example of a guiding principle.

All data will have people assigned to play critical roles in it

The guiding principle above is focused on accountability. Making sure all data has people who are assigned to perform various responsibilities concerning it is important to define and explain.

Roles & Responsibilities

Roles and responsibilities are about explaining the function of the data governance team and the role each person will play. For example, a small organization might have people who adopt more than one role such as being data stewards and custodians while larger organizations might separate these roles.

In addition, it is also important to determine the operating model and whether it will be centralized or decentralized. Determining the operating model again depends on the context and preferences of the organization.

It is also critical to determine how compliance with the policies and standards will be measured. It is not enough to say it, eventually, there needs to be evidence in terms of progress and potential changes that need to be made to the strategy. For example, perhaps a data audit is done monthly or quarterly to assess data quality.

Conclusion

Having a data governance strategy is a crucial step in improving data governance within an organization. Once a plan is in place it is simply a matter of implementation to see if it works.

white dry erase board with red diagram

Data Governance Assessment

Before data governance can begin at an organization it is critical to assess where the organization is currently in terms of data governance. This necessitates the need for a data governance assessment. The assessment helps an organization to figure out where to begin by identifying challenges and prioritizing what needs to be addressed. In particular, it is common for there to be five steps in this process as shown below.

  1. Identify data sources and stakeholders
  2.  Interview stakeholders
  3.  Determine current capabilities
  4.  Document the current state and target state
  5.  Analyze gaps and prioritize

We will look at each of these steps below.

Identify Data Sources and Stakeholders

Step one involves determining what data is used within the organization and the users or stakeholders of this data. Essentially, you are trying to determine…

  • What data is out there?
  •  Who uses it?
  •  Who produces it?
  •  Who protects it?
  •  Who is responsible for it?

Answering these questions also provides insights into what roles in relation to data governance are already being fulfilled at least implicitly and which roles need to be added to the organization. At most organizations at least some of these questions have answers and there are people responsible for many roles. The purpose here is not only to get this information but also to make people aware of the roles they are fulfilling from a data governance perspective.

ad

Interview Stakeholders

Step two involves interviewing stakeholders. Once it is clear who is associated with data in the organization it is time to reach out to these people. You want to develop questions to ask stakeholders in order to inform you about what issues to address in relation to data governance.

An easy way to do this is to develop questions that address the pillars of data governance. The pillars are…

  • Ownership & accountability
  •  Data quality
  •  Data protection and privacy
  •  Data management
  •  Data use

Below are some sample questions based on the pillars above.

  • How do you know your data is of high quality
  •  What needs to be done to improve data quality
  •  How is data protected from misuse and loss
  •  How is metadata handle
  •  What concerns do you have related to data
  •  What policies are there now related to data
  •  What roles are there in relation to data
  •  How is data used here

It may be necessary to address all or some of these pillars when conducting the assessment. The benefit of these pillars is they provide a starting point in which you can shape your own interview questions. In terms of the interview, it is up to each organization to determine what is best for data collection. Maybe a survey works or perhaps semi-structured interviews or focus groups. The actual research part of this process is beyond the scope of this interview.

Determine Current Capabilities

Step three involves determining the current capabilities of the organization in terms of data governance. Often this can be done by looking at the stakeholder interviews and comparing what they said to a rating scale. For example, the DCAM rating scale has six levels of data governance competence as shown below.

  1. Non-initiated-No governance happening
  2.  Conceptual-Aware of data governance and planning
  3.  Developmental-Engaged in developing a plan
  4.  Defined-PLan approved
  5.  Achieved-Plann implemented and enforced
  6.  Enhanced-Plan a part of the culture and updated regularly

Determining the current capabilities is a subjective process. However, it needs to be done in order to determine the next steps in bringing data governance along in an organization.

Document Current State and Target State

Step four involves determining the current state and determining what the target state is. Again, this will be based on what was learned in the stakeholder interviews. What you will do is report what the stakeholders said in the interviews based on the pillars of data governance. It is not necessary to use the pillars but it does provide a convenient way to organize the data without having to develop your own way of classifying the results.

Once the current state is defined it is now time to determine what the organization should be striving for in the future and this is called the target state. The target state is the direction the organization is heading within a given timeframe. It is up to the data governance team to determine this and how it is done will vary. The main point is to make sure not to try and address too many issues at once and save some for the next cycle.

Analyze and Prioritize

The final step is to analyze and prioritize. This step involves performing a gap analysis to determine solutions that will solve the issues found in the previous step. In addition, it is also important to prioritize which gaps to address first.

Another part of this step is sharing recommendations and soliciting feedback. Provide insights into which direction the organization can go to improve its data governance and allow stakeholders to provide feedback in terms of their agreement with the report. Once all this is done the report is completed and documented until the next time this process needs to take place.

Conclusion

The steps presented here are not prescriptive. They are shared as a starting point for an organization’s journey in improving data governance. With experience, each organization will find its own way to support its stakeholders in the management of data.


Total Data Quality

Total data quality as its name implies is a framework for improving the state of data that is used for research and reporting purposes. The dimensions that are used to assess the quality of data are measurement and representation

Measurement

Measurement is focused on the values gathered on the variable(s) of interest. When assessing measurement researchers are concerned with.

ad
  • Construct-The construct is the definition of the variable of interest. For example, income is can be defined as a person’s gross yearly salary in dollars. However, salary can also be defined as per month or as the net after taxes to show how this construct can be defined differently. The construct validity must also be determined to ensure that it is measuring what it claims to measure.
  •  Field-This is the place where data is collected and how it is collected. For example, our income variable can be collected from students or working adults. Where the data comes from affects the quality of the data concerning the research problem and questions. If the research questions are focused on student income then collecting income data from students ensures quality. In addition, how the data is encoded matters. All student incomes need to be in the same currency in order to make sense for comparision
  •  Data Values-This refers to the tools and procedures for preparing the data for analysis to ensure high-quality values within the data. Such challenges addressed are dealing with missing data, data entry errors, duplications, assumptions for various analytical approaches, and or issues between variables such as high correlations.

Representation

Representation looks at determining if the data collected comes from the population of interest. Several concerns need to be addressed when dealing with representation.

  • Target population- The target population is potential participants in the study. The limitation here is determining the access of the target population. For example, studies involving children can be difficult because of ethical concerns over data collection with children. These ethical concerns limit access at times.
  •  Data sources- Data sources are avenues for obtaining data. It can relate to a location such as a school or to a group of people such as students among other definitions. Once access is established it is necessary to specifically determine where the data will come from.
  •  Missing data-Missing data isn’t just looking at what data is not complete in a dataset. Missing data is also about looking at who was left out of the data collection process. For example, if the target population is women then women should be represented in the data. In addition, missing data can also look at who is represented in the data but should not be. For example, if women are the target population then there should not be any men in the dataset.

Where measurement and representation meet is at the data analysis part of a research project. If the measurement and representation are bad it is already apparent that the data analysis will not yield useful insights. However, if the measurement and representation are perfect but the analysis is poor then you are still left without useful insights.

Conclusion

Measurement and representation are key components of data quality. Researchers need to be aware of these ideas to ensure that they are providing useful results to whatever stakeholders are involved in a study.

two gray bullet security cameras

Data Governance Office

The data governance office or team are the leaders in dealing with data within an organization. This team is comprised of several members such as

  • Chief Data Officer
  •  Data Governance Lead
  •  Data Governance Consultant
  •  Data Quality Analyst

We will look at each of these below. It also needs to be mentioned that a person might be assigned several of these roles which are particularly true in a smaller organization. In addition, it is possible that several people might fulfill one of these roles in a much larger organization as well.

Chief Data Officer

The chief data officer is responsible for shaping the overall data strategy at an organization. The chief data officer also promotes a data-driven culture and pushes for change within the organization. A person in this position also needs to understand the data needs of the organization in order to further the vision of the institution or company.

ad

The role of the chief data officer encompasses all of the other roles that will be discussed. The chief data officer is essentially the leader of the data team and provides help with governance consulting, quality, and analytics. However, the primary role of this position is to see the big picture for big data and to guide the organization in this regard, which implies that technical skills are beneficial but leadership and change promotion is more critical. In sum, this is a challenging position that requires a large amount of experience

Data Governance Lead

The data governance leads primary responsibilities to involve defining policies and data governance frameworks. While the chief data officer is more of an evangelist or promoter of data governance the data governance lead is focused on the actual implementation of change and guiding the organization in this process.

Essentially, the data governance lead is in charge of the day-to-day operation of the data governance team. While the chief data officer may be the dreamer the data governance lead is a steady hand behind the push for change.

Data Governance Consultant

The data governance consultant is the subject matter expert in data governance. Their role is to know all the details of data governance in the general field and even better if they know how to make data governance happen in a particular discipline. For example, a data governance consultant who knows how to make data governance happen within the context of a university in particular.

The data governance consultant supports the data governance lead with implementation. In addition, the consultant is a go-between for the larger organization and IT. Serving as a go-between implies that the consultant is able to effectively communicate with both parties on a technical level with IT and in a layman’s matter with the larger organization. The synergy between IT and the larger organization can be challenging because of communications issues due to vastly different backgrounds and it is the consultant’s responsibility to bridge this gap.

Data Quality Analyst

The data quality analyst’s job is as the name implies to ensure quality data. One way of determining data quality is to develop rules for data entry. For example, a rule for data quality is that marital status can only be single, married, divorced, or widowed. This rule restricts any other option that people may want. When this rule is supported it is an example of high quilty within this context.

A data quality analyst also performs troubleshooting or root cause investigations. If something funny is going on in the data such as duplicates, it is the data quality analyst’s job to determine what is causing the problems and to find a solution. Lastly, a data quality analyst is also responsible for statistical work. This can include statistical work that is associated with the work of a data analyst and or statistical work that monitors the use of data and the quality of data within the organization.

Conclusion

The data governance team plays a critical role in supporting the organization with reliable and clean data that can be trusted to make actionable insights. Even though this is a tremendous challenge it is an important function in an organization.

interior of empty parking lot

Roles in Data Governance

Working with data is a team event. Different people are involved in different stages of the data process. The roles described below are roles commonly involved in data governance. The general order below is the common order in which these individuals will work with data. However, life is not always linear and different people may jump in at different times. In addition, one person might have more than one role when working with data in the governance process.

Data Owners

Data owners are responsible for the infrastructure such as the database in which data is stored for consumption and use. Data owners are also in charge of the allocation of resources related to the data. Data owners also play a critical role in developing standard operating procedures and compliance with these standards.

Data Producers

Once the database or whatever tool is used for the data the next role involved is the data producer. Data producers are responsible for creating data. The creation of data can happen through such processes as data entry or data collection. Data producers may also support quality control and general problem-solving of issues related to data. To make it simple the producer uses the system that the owner developed for the data.

ad

Data Engineers

Data engineers are responsible for pipeline development which is moving data from one place to the other for various purposes. Data engineers deal with storage optimization and distribution. Data engineers also support the automation of various tasks. Essentially, engineers move around the data that producers create.

Data Custodians

Data custodians are the keepers and protectors of data. They focus on using the storage created by the data owner and the delivery of data like the data engineer. The difference is that the data custodian sends data to the people after them in this process such as stewards and analysts.

Data custodians also make sure to secure and back up the data. Lastly, data custodians are often responsible for network management.

Data Stewards

Data stewards work on defining and organizing data. These tasks might involve working with metadata in particular. Data students also serve as gatekeepers to the data which involves keeping track of who is using and accessing the data. Lastly, data stewards help consumers (analysts and scientists) find the data that they may need to complete a project.

Data Analysts

Data analysts as the name implies analyze the data. Their job can involve statistical modeling of data to make a historical analysis of what happened in the past. Data analysts are also responsible for cleaning data for analysis. In addition, data analysts are primarily responsible for data visualization and storytelling development of data. Dashboards and reports are also frequently developed by the data analyst.

Data Scientists

The role of a data scientist is highly similar to data analyst. The main difference is that data scientists use data to predict the future while data analysts use data to explain the past. In addition, data scientists serve as research designers to acquire additional data for the goals of a project. Lastly, data scientists do advance statistical work involving at times machine learning, artificial intelligence, and data mining.

Conclusion

The roles mentioned above all play a critical role in supporting data within an organization. When everybody plays their part well organizations can have much more confidence in the decisions they make based on the data that they have.

person holding white and black frame

Data Governance Framework Types and Principles

When it is time to develop data governance policies the first thing to consider is how the team views data governance. In this post, we will look at various data governance frameworks and principles to keep in mind when employing a data governance framework.

Top-Down

The top-down framework involves a small group of data providers. These data providers serve as gatekeepers for data that is used in the institution. Whatever data is used is controlled centrally in this framework.

ad

One obvious benefit of this approach is that with a small group of people in charge, decision-making should be fast and relatively efficient. In addition, if something does go wrong it should be easy to trace the source of the problem. However, a top-down approach only works in situations that have small amounts of data or end users. When the amount of data becomes too large the small team will struggle to support users which indicates that this approach is hard to scale. Lastly, people may resent having to abide by rules that are handed down from above.

Bottom-Up

The bottom-up approach to data governance is the mirror opposite of the top-down approach. Where top-down involves a handful of decision-makers bottom-up focus is on a democratic style of data leadership. Bottom-up is scaleable due to everyone being involved in the process while top-down does not scale well. Generally, controls and restrictions on data are put in place after the raw data is shared rather than before when the bottom-up approach is used.

Like all approaches to data governance, there are concerns with the bottom-up approach. For example, it becomes harder to control the data when people are allowed to use raw data that has not been prepared for use. In addition, because of the democratic nature of the bottom-up approach, there is also an increased risk of security concerns because of the increased freedom people have.

Collaborative

The collaborative approach is a mix of top-down and bottom-up ideas on data governance. This approach is flexible and balanced while placing an emphasis on collaboration. The collaboration can be among stakeholders or between the gatekeepers and the users of data.

One main concern with this approach is that it can become messy and difficult to execute if principles and goals are not clearly defined. There it is important to spend a large amount of time in planning when choosing this approach.

Principles

Regardless of which framework you pick when beginning data governance. There are also several terms you need to be familiar with to help you be successful. For example, integrity involves maintaining open lines of communication and the sharing of problems so that an atmosphere of trust is maintained or developed.

It is also important to determine ownership for the purpose of governance and decision-making. Determining ownership also helps to find gaps in accountability and responsibility for data.

Leaders in data governance must also be aware of change and risk management. Change management is tools and process for communicating new strategies and policies related to data governance. Change management helps with ensuring a smooth transition from one state of equilibrium to another. Risk management is tools related to auditing and developing interventions for non-compliance.

A final concept to be aware of is strategic alignment. The goals and purpose of data governance must align with the goals of the organization that data governance is supporting. For example, a school will have a strict stance on protecting student privacy. Therefore, data governance needs to reflect this and support strict privacy policies

Conclusion

Frameworks provide a foundation on which your team can shape their policies for data governance. Each framework has its strengths and weaknesses but the point is to be aware of the basic ways that you can at least begin the process of forming policies and strategies for governing data at an organization.

white paper with note

Data Governance Framework

In this post we will look at a defining data governance framework. We will also look a the key components that are a part of a data governance framework.

Defined

A data governance framework is the how or the plan for governing the data within an organization. The term data governance determines what needs to be governed or controlled while the data governance framework is the actual plan for controlling the data.

Common Components

There are several common components of a data governance plan and they include the following.

  • Strategy
  •  Policies
  •  Processes
  •  Coordination
  •  Monitoring/communication
  •  Data literacy/culture

Strategy involves determining how data can be used to solve problems. This may seem pointless but certain data can be used to solve certain problems. For example, customers’ addresses in California might not be appropriate for determining revenue generated in Texas. When data is looked at strategically it helps to ensure that it is viewed as an asset in many cases by those who use it.

ad

Policies help to guide such things as decision-making and expectations concerning data. In addition, policies also help with determining responsibilities and tasks related to data management. One example of policy in action is the development of standards which are rules for best practices in order to meet a policy. A policy may be something like protecting privacy. A standard to meet this policy would be to ensure that data is encrypted and password protected.

Process and technology involve steps for monitoring the quality of data. Other topics related to process can include dealing with metadata and data management. The proper process mainly helps with efficiency in the organization.

Coordination involves the processes of working together. Coordination can involve defining the roles and responsibilities for a complex process that requires collaboration with data. In other words, coordination is developed when multiple parties are involved with a complex task.

Progress monitoring involves the development of KPIs to make sure that the performance expectations are measured and adhered to. Progress monitoring can also involve issues related to privacy, quality, and compliance. An example of progress monitoring may be requiring everyone to change their password every 90 days. At the end of the 90 days, the system will automatically make the user create a new password.

Lastly, data literacy and culture involve training and developing the skill of analyzing and or communicating data to people and others within the organization of use or consumption data. Naturally, this is an ongoing process and how it works depends on who is involved.

Conclusion

A framework is a plan for achieving a particular goal or vision. As organizations work with data, they must be diligent in making sure that the data that is used is trustworthy and protected. A data governance framework is one way in which these goals can be attained.

a man in maroon suit sitting at the table

Influences and Approaches of Data Governance

Data governance has been around for a while. As a result of this, there have been various trends and challenges that have influenced this field. in this post, we will look at several laws that have had an impact on data governance along with various concepts that have been developed to address common concerns.

Laws

Several laws have played a critical role in influencing data governance both in the USA and internationally. For example, the Sarbanes-Oxley (SOX) Act was enacted in 2002. The SOX act was created in reaction to various accounting scandals at the time and large corporations. Among some of the requirements of this law are setting standards for financial and corporate reporting and the need for executives to verify or attest that the financial information is correct. Naturally, this requires data governance to make sure that the data is appropriate so that these requirements can be met.

ad

There are also several laws related to privacy in particular. Focusing again on the USA there is the Health Insurance Portability and Accountability (HIPAA) which requires institutions in the medical field to protect patient data. For leaders in data, they must develop data governance policies that protect medical information.

In the state of California, there is the California Consumers Protection Act (CCPA) which allows California residents more control over how their personal data is handled by companies. The CCPA is focused much more on the collection and selling of personal data as this has become a lucrative industry in the data world.

At the international level, there is the General Data Protection Regulation (GDPR). The GDPR is a privacy law that applies to anybody who lives in the EU. What this implies is that a company in another part of the world that has customers in the EU must abide by this law as well. As such, this is one example of a local law related to data governance that can have a global impact.

Various Concepts that Support Data Governance

Data governance was around much earlier than the laws described above. However, several different concepts and strategies were developed to address transparency and privacy as explained below.

Data classification and retention deals with the level of confidentiality of the data and policies for data destruction. For example, social security numbers is a form of data that is highly confidential while the types of shoes a store sells would probably not be considered private. In addition, some data is not meant to be kept forever. For example, consumers may request their information be removed from a website such as credit card numbers. In such a situation there must be a way for this data to be removed permanently from the system.

Data management is focused on consistency and transparency. There must be a master copy of data to serve as a backup and for checking the accuracy of other copies. In addition, there must be some form of data reference management to identify and map datasets through some general identification such as zip code or state.

Lastly, metadata management deals with data that describes the data. By providing this information it is possible to search and catalog data

Conclusion

Data governance will continue to be influenced by the laws and context of the world. With new challenges will be new ways to satisfy the concerns of both lawmakers and the general public.

white caution cone on keyboard

Data Governance

Data governance involves several concepts that describe the characteristics and setting in which the data is found. For people in leadership positions involving data, it is critical to have some understanding of the following concepts related to data governance. These concepts are

  • Ownership
  •  Quality
  •  Protection
  •  Use/Availability
  •  Management

Each of these concepts plays a role in shaping the role of data within an organization.

Ownership

Data ownership is not always as obvious as it seems. One company may be using the data of a different company. It is important to identify who the data belongs to so that any rules and restrictions that the owner has about the use of the data are something that the user of the data is aware of.

ad

Addressing details related to ownership helps to determine accountability as well. Identifying ownership can also identify who is responsible for the data because the owners will hopefully have an idea of who should be using the data. If not this is something that needs to be clarified as well.

Quality

Data quality is another self-explanatory term. Data quality is a way of determining how good the data is based on some criteria. One commonly used criterion for data quality is to determine the data’s completeness, consistency, timeliness, accuracy, and integrity.

Completeness is determining if everything that the data is supposed to capture is represented in the data set. For example, if income is one variable that needs to be in a dataset it is important to check that it is there.

Consistency is that the data that you are looking at is similar to other data in the same context. For example, student record data is probably similar regardless of the institutions. Therefore, someone with experience with student record data can tell you if the data you are looking at is consistent with other data in a similar context.

Timeliness has to do with the recency of the data. Some data is real-time while other data is historical. Therefore, the timeliness of the data will depend on the context of the project. A chatbot needs recent data while a study of incomes from ten years ago does not need data from yesterday.

Accuracy and integrity are two more measures of qualityu. Accuracy is how well the data represents the population. For example, a population of male college students should have data about male college students. Integrity has to do with the truthfulness of the data. For example, if the data was manipulated this needs to be explained.

Protection

Data protection has to do with all of the basic security concerns IT departments have to deal with today. Some examples include encryption and password protection. In addition, there may be a need to be aware of privacy concerns such as financial records or data collected from children.

There should also be awareness of disaster recovery. For example, there might be a real disaster that wipes out data or it can be an accidental deletion by someone. In either case, there should be backup copies of the data. Lastly, protection also involves controlling who has access to the data.

Use/Availability

Despite the concerns of protection, data still needs to be available to the appropriate parties and this relates to data availability. Whoever is supposed to have the data should be able to access it as needed.

The data must also be usable. The level of usability will depend on the user. For example, a data analyst should be able to handle messy data but a consumer of dashboards needs the data to be clean and ready prior to use.

Management

Data management is the implementation of the policies that are developed in the previous ideas mentioned. The data leadership team needs to develop processes and policies for ownership, quality, protection, and availability of data.

Once the policies are developed they have to actually be employed within the institution which can always be difficult as people generally want to avoid accountability and or responsibility, especially when things go wrong. In addition, change is always disliked as people gravitate towards the current norms.

Conclusion

Data governance is a critical part of institutions today given the importance of data now. IT departments need to develop policies and plans on the data in order to maintain trust in whatever conclusions are made from data.

Quadratic Discriminant Analysis with Python

Quadratic discriminant analysis allows for the classifier to assess non -linear relationships. This of course something that linear discriminant analysis is not able to do. This post will go through the steps necessary to complete a qda analysis using Python. The steps that will be conducted are as follows

  1. Data preparation
  2. Model training
  3. Model testing

Our goal will be to predict the gender of examples in the “Wages1” dataset using the available independent variables.

Data Preparation

We will begin by first loading the libraries we will need

import pandas as pd
from pydataset import data
import matplotlib.pyplot as plt
from sklearn.discriminant_analysis import QuadraticDiscriminantAnalysis as QDA
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report
from sklearn.metrics import (confusion_matrix,accuracy_score)
import seaborn as sns
from matplotlib.colors import ListedColormap

Next, we will load our data “Wages1” it comes from the “pydataset” library. After loading the data, we will use the .head() method to look at it briefly.

1

We need to transform the variable ‘sex’, our dependent variable, into a dummy variable using numbers instead of text. We will use the .getdummies() method to make the dummy variables and then add them to the dataset using the .concat() method. The code for this is below.

In the code below we have the histogram for the continuous independent variables.  We are using the .distplot() method from seaborn to make the histograms.

fig = plt.figure()
fig, axs = plt.subplots(figsize=(15, 10),ncols=3)
sns.set(font_scale=1.4)
sns.distplot(df['exper'],color='black',ax=axs[0])
sns.distplot(df['school'],color='black',ax=axs[1])
sns.distplot(df['wage'],color='black',ax=axs[2])

1

The variables look reasonable normal. Below is the proportions of the categorical dependent variable.

round(df.groupby('sex').count()/3294,2)
Out[247]:
exper school wage female male
sex
female 0.48 0.48 0.48 0.48 0.48
male 0.52 0.52 0.52 0.52 0.52

About half male and half female.

We will now make the correlational matrix

corrmat=df.corr(method='pearson')
f,ax=plt.subplots(figsize=(12,12))
sns.set(font_scale=1.2)
sns.heatmap(round(corrmat,2),
vmax=1.,square=True,
cmap="gist_gray",annot=True)

1

There appears to be no major problems with correlations. The last thing we will do is set up our train and test datasets.

X=df[['exper','school','wage']]
y=df['male']
X_train,X_test,y_train,y_test=train_test_split(X,y,
test_size=.2, random_state=50)

We can now move to model development

Model Development

To create our model we will instantiate an instance of the quadratic discriminant analysis function and use the .fit() method.

qda_model=QDA()
qda_model.fit(X_train,y_train)

There are some descriptive statistics that we can pull from our model. For our purposes, we will look at the group means  Below are the  group means.

exper school wage
Female 7.73 11.84 5.14
Male 8.28 11.49 6.38

You can see from the table that mean generally have more experience, higher wages, but slightly less education.

We will now use the qda_model we create to predict the classifications for the training set. This information will be used to make a confusion matrix.

cm = confusion_matrix(y_train, y_pred)
ax= plt.subplots(figsize=(10,10))
sns.set(font_scale=3.4)
with sns.axes_style('white'):
sns.heatmap(cm, cbar=False, square=True, annot=True, fmt='g',
cmap=ListedColormap(['gray']), linewidths=2.5)

1

The information in the upper-left corner are the number of people who were female and correctly classified as female. The lower-right corner is for the men who were correctly classified as men. The upper-right corner is females who were classified as male. Lastly, the lower-left corner is males who were classified as females. Below is the actually accuracy of our model

round(accuracy_score(y_train, y_pred),2)
Out[256]: 0.6

Sixty percent accuracy is not that great. However, we will now move to model testing.

Model Testing

Model testing involves using the .predict() method again but this time with the testing data. Below is the prediction with the confusion matrix.

 y_pred=qda_model.predict(X_test)
cm = confusion_matrix(y_test, y_pred)
from matplotlib.colors import ListedColormap
ax= plt.subplots(figsize=(10,10))
sns.set(font_scale=3.4)
with sns.axes_style('white'):
sns.heatmap(cm, cbar=False, square=True,annot=True,fmt='g',
cmap=ListedColormap(['gray']),linewidths=2.5)

1

The results seem similar. Below is the accuracy.

round(accuracy_score(y_test, y_pred),2)
Out[259]: 0.62

About the same, our model generalizes even though it performs somewhat poorly.

Conclusion

This post provided an explanation of how to do a quadratic discriminant analysis using python. This is just another potential tool that may be useful for the data scientist.

Data Munging with Dplyr

Data preparation aka data munging is what most data scientist spend the majority of their time doing. Extracting and transforming data is difficult, to say the least. Every dataset is different with unique problems. This makes it hard to generalize best practices for transforming data so that it is suitable for analysis.

In this post, we will look at how to use the various functions in the “dplyr”” package. This package provides numerous ways to develop features as well as explore the data. We will use the “attitude” dataset from base r for our analysis. Below is some initial code.

library(dplyr)
data("attitude")
str(attitude)
## 'data.frame':    30 obs. of  7 variables:
##  $ rating    : num  43 63 71 61 81 43 58 71 72 67 ...
##  $ complaints: num  51 64 70 63 78 55 67 75 82 61 ...
##  $ privileges: num  30 51 68 45 56 49 42 50 72 45 ...
##  $ learning  : num  39 54 69 47 66 44 56 55 67 47 ...
##  $ raises    : num  61 63 76 54 71 54 66 70 71 62 ...
##  $ critical  : num  92 73 86 84 83 49 68 66 83 80 ...
##  $ advance   : num  45 47 48 35 47 34 35 41 31 41 ...

You can see we have seven variables and only 30 observations. Our first function that we will learn to use is the “select” function. This function allows you to select columns of data you want to use. In order to use this feature, you need to know the names of the columns you want. Therefore, we will first use the “names” function to determine the names of the columns and then use the “select”” function.

names(attitude)[1:3]
## [1] "rating"     "complaints" "privileges"
smallset<-select(attitude,rating:privileges)
head(smallset)
##   rating complaints privileges
## 1     43         51         30
## 2     63         64         51
## 3     71         70         68
## 4     61         63         45
## 5     81         78         56
## 6     43         55         49

The difference is probably obvious. Using the “select” function we have 3 instead of 7 variables. We can also exclude columns we do not want by placing a negative in front of the names of the columns. Below is the code

head(select(attitude,-(rating:privileges)))
##   learning raises critical advance
## 1       39     61       92      45
## 2       54     63       73      47
## 3       69     76       86      48
## 4       47     54       84      35
## 5       66     71       83      47
## 6       44     54       49      34

We can also use the “rename” function to change the names of columns. In our example below, we will change the name of the “rating” to “rates.” The code is below. Keep in mind that the new name for the column is to the left of the equal sign and the old name is to the right

attitude<-rename(attitude,rates=rating)
head(attitude)
##   rates complaints privileges learning raises critical advance
## 1    43         51         30       39     61       92      45
## 2    63         64         51       54     63       73      47
## 3    71         70         68       69     76       86      48
## 4    61         63         45       47     54       84      35
## 5    81         78         56       66     71       83      47
## 6    43         55         49       44     54       49      34

The “select”” function can be used in combination with other functions to find specific columns in the dataset. For example, we will use the “ends_with” function inside the “select” function to find all columns that end with the letter s.

s_set<-head(select(attitude,ends_with("s")))
s_set
##   rates complaints privileges raises
## 1    43         51         30     61
## 2    63         64         51     63
## 3    71         70         68     76
## 4    61         63         45     54
## 5    81         78         56     71
## 6    43         55         49     54

The “filter” function allows you to select rows from a dataset based on criteria. In the code below we will select only rows that have a 75 or higher in the “raises” variable.

bigraise<-filter(attitude,raises>75)
bigraise
##   rates complaints privileges learning raises critical advance
## 1    71         70         68       69     76       86      48
## 2    77         77         54       72     79       77      46
## 3    74         85         64       69     79       79      63
## 4    66         77         66       63     88       76      72
## 5    78         75         58       74     80       78      49
## 6    85         85         71       71     77       74      55

If you look closely all values in the “raise” column are greater than 75. Of course, you can have more than one criteria. IN the code below there are two.

filter(attitude, raises>70 & learning<67)
##   rates complaints privileges learning raises critical advance
## 1    81         78         56       66     71       83      47
## 2    65         70         46       57     75       85      46
## 3    66         77         66       63     88       76      72

The “arrange” function allows you to sort the order of the rows. In the code below we first sort the data ascending by the “critical” variable. Then we sort it descendingly by adding the “desc” function.

ascCritical<-arrange(attitude, critical)
head(ascCritical)
##   rates complaints privileges learning raises critical advance
## 1    43         55         49       44     54       49      34
## 2    81         90         50       72     60       54      36
## 3    40         37         42       58     50       57      49
## 4    69         62         57       42     55       63      25
## 5    50         40         33       34     43       64      33
## 6    71         75         50       55     70       66      41
descCritical<-arrange(attitude, desc(critical))
head(descCritical)
##   rates complaints privileges learning raises critical advance
## 1    43         51         30       39     61       92      45
## 2    71         70         68       69     76       86      48
## 3    65         70         46       57     75       85      46
## 4    61         63         45       47     54       84      35
## 5    81         78         56       66     71       83      47
## 6    72         82         72       67     71       83      31

The “mutate” function is useful for engineering features. In the code below we will transform the “learning” variable by subtracting its mean from its self

attitude<-mutate(attitude,learningtrend=learning-mean(learning))
head(attitude)
##   rates complaints privileges learning raises critical advance
## 1    43         51         30       39     61       92      45
## 2    63         64         51       54     63       73      47
## 3    71         70         68       69     76       86      48
## 4    61         63         45       47     54       84      35
## 5    81         78         56       66     71       83      47
## 6    43         55         49       44     54       49      34
##   learningtrend
## 1    -17.366667
## 2     -2.366667
## 3     12.633333
## 4     -9.366667
## 5      9.633333
## 6    -12.366667

You can also create logical variables with the “mutate” function.In the code below, we create a logical variable that is true when the “critical” variable” is higher than 80 and false when “critical”” is less than 80. The new variable is called “highCritical”

attitude<-mutate(attitude,highCritical=critical>=80)
head(attitude)
##   rates complaints privileges learning raises critical advance
## 1    43         51         30       39     61       92      45
## 2    63         64         51       54     63       73      47
## 3    71         70         68       69     76       86      48
## 4    61         63         45       47     54       84      35
## 5    81         78         56       66     71       83      47
## 6    43         55         49       44     54       49      34
##   learningtrend highCritical
## 1    -17.366667         TRUE
## 2     -2.366667        FALSE
## 3     12.633333         TRUE
## 4     -9.366667         TRUE
## 5      9.633333         TRUE
## 6    -12.366667        FALSE

The “group_by” function is used for creating summary statistics based on a specific variable. It is similar to the “aggregate” function in R. This function works in combination with the “summarize” function for our purposes here. We will group our data by the “highCritical” variable. This means our data will be viewed as either TRUE for “highCritical” or FALSE. The results of this function will be saved in an object called “hcgroups”

hcgroups<-group_by(attitude,highCritical)
head(hcgroups)
## # A tibble: 6 x 9
## # Groups:   highCritical [2]
##   rates complaints privileges learning raises critical advance
##
## 1    43         51         30       39     61       92      45
## 2    63         64         51       54     63       73      47
## 3    71         70         68       69     76       86      48
## 4    61         63         45       47     54       84      35
## 5    81         78         56       66     71       83      47
## 6    43         55         49       44     54       49      34
## # ... with 2 more variables: learningtrend , highCritical

Looking at the data you probably saw no difference. This is because we are not done yet. We need to summarize the data in order to see the results for our two groups in the “highCritical” variable.

We will now generate the summary statistics by using the “summarize” function. We specifically want to know the mean of the “complaint” variable based on the variable “highCritical.” Below is the code

summarize(hcgroups,complaintsAve=mean(complaints))
## # A tibble: 2 x 2
##   highCritical complaintsAve
##
## 1        FALSE      67.31579
## 2         TRUE      65.36364

Of course, you could have learned this through doing a t.test but this is another approach.

Conclusion

The “dplyr” package is one powerful tool for wrestling with data. There is nothing new in this package. Instead, the coding is simpler than what you can excute using base r.

Understanding Recommendation Engines

Recommendations engines are used to make predictions about what future users would like based on prior users suggestions. Whenever you provide numerical feedback on a product or services this information can be used to provide recommendations in the future.

This post will look at various ways in which recommendation engines derive their conclusions.

Ways of Recommending

There are two common ways to develop a recommendation engine in a machine learning context. These two ways are collaborative filtering and content-based. Content-based recommendations rely solely on the data provided by the user. A user develops a profile through their activity and the engine recommends products or services. The only problem is if there is little data on user poor recommendations are made.

Collaborative filtering is crowd-based recommendations. What this means the data of many is used to recommend to one. This bypasses the concern with a lack of data that can happen with content-based recommendations.

There are four common ways to develop collaborative filters and they are as follows

  • User-based collaborative filtering
  • Item-baed collaborative filtering
  • Singular value decomposition and Principal component  analysis

User-based Collaborative Filtering (UBCF)

UBCF uses k-nearest neighbor or some similarity measurement such as Pearson Correlation to predict the missing rating for a user. Once the number of neighbors is determined the algorithm calculates the average of the neighbors to predict the information for the user. The predicted value can be used to determine if a user will like a particular product or service

The predicted value can be used to determine if a user will like a particular product or service. Low values are not recommended while high values may be. A major weakness of UBCF is calculating the similarities of users requires keeping all the data in memory which is a computational challenge.

Item-based Collaborative Filtering (IBCF)

IBCF uses the similarity between items to make recomeendations. This is calculated with the same measures as before (Knn, Pearson correlation, etc.). After finding the most similar items, The algorithm will take the average from the individual user of the other items to predict recommendation the user would make for the unknown item.

In order to assure accuracy, it is necessary to have a huge number of items that can have the similarities calculated. This leads to the same computational problems mentioned earlier.

Singular Value Decomposition and Principal Component Analysis (SVD, PCA)

When the dataset is too big for the first two options. SVD or PCA could be an appropriate choice. What each of these two methods does in a simple way is reduce the dimensionality by making latent variables. Doing this reduces the computational effort as well as reduce noise in the data.

With SVD, we can reduce the data to a handful of factors. The remaining factors can be used to reproduce the original values which can then be used to predict missing values.

For PCA, items are combined in components and like items that load on the same component can be used to make predictions for an unknown data point for a user.

Conclusion

Recommendation engines play a critical part in generating sales for many companies. This post provided an insight into how they are created. Understanding this can allow you to develop recommendation engines based on data.

Exploratory Data Analyst

In data science, exploratory data analyst serves the purpose of assessing whether the data set that you have is suitable for answering the research questions of the project. As such, there are several steps that can be taken to make this process more efficient.

Therefore, the purpose of this post is to explain one process that can be used for exploratory data analyst. The steps include the following.

  • Consult your questions
  • Check the structure of the dataset
  • Use visuals

Consult Your Questions

Research questions give a project a sense of direction. They help you to know what you want to know. In addition, research questions help you to determine what type of analyst to conduct as well.

During the data exploration stage, the purpose of a research question is not for analyst but rather to determine if your data can actually provide answers to the questions. For example, if you want to know what the average height of men in America are and your data tells you the salary of office workers there is a problem,. Your question (average height) cannot be answered with the current data that you have (office workers salaries).

As such, the research questions need to be answerable and specific before moving forward. By answerable, we mean that the data can provide the solution. By specific, we mean a question moves away from generalities and deals with a clearly defined phenomenon. For example, “what is the average height of males age 20-30 in the United states?” This question clearly identifies the what we want to know (average height) and among who (20-30, male Americans).

Not can you confirm if your questions are answerable you can also decide if you need to be more or less specific with your questions. Returning to our average height question. We may find that we can be more specific and check average height by state if we want. Or, we might learn that we can only determine the average height for a region. All this depends on the type of data we have.

Check the Structure

Checking the structure involves determining how many rows and columns in the dataset, the sample size, as well as looking for missing data and erroneous data. Data sets in data science almost always need some sort of cleaning or data wrangling before analyst and checking the structure helps to determine what needs to be done.

You should have a priori expectations for the structure of the dataset. If the stakeholders tell you that there should be several million rows in the data set and you check and there are only several thousand you know there is a problem. This concept also applies to the number of features you expect as well.

Make Visuals

Visuals, which can be plots or tables, help you further develop your expectations as well as to look for deviations or outliers. Tables are an excellent source for summarizing data. Plots, on the other hand, allow you to see deviations from your expectations in the data.What kind of tables and plots to make depends heavily on

What kind of tables and plots to make depends heavily on the type of data as well as the type of questions that you have. For example, for descriptive questions tables of summary statistics with bar plots might be sufficient. For comparison questions, summary stats and boxplots may be enough. For relationship question, summary stat tables with a scatterplot may be enough. Please keep in mind that it is much more complicated than this.

Conclusion

Before questions can be answered the data needs to be explored. This will help to make sure that the potential answers that are developed are appropriate.

Data Science Research Questions

Developing research questions is an absolute necessity in completing any research project. The questions you ask help to shape the type of analysis that you need to conduct.

The type of questions you ask in the context of analytics and data science are similar to those found in traditional quantitative research. Yet data science, like any other field, has its own distinct traits.

In this post, we will look at six different types of questions that are used frequently in the context of the field of data science. The six questions are…

  1. Descriptive
  2. Exploratory/Inferential
  3. Predictive
  4. Causal
  5. Mechanistic

Understanding the types of question that can be asked will help anyone involved in data science to determine what exactly it is that they want to know.

Descriptive

A descriptive question seeks to describe a characteristic of the dataset. For example, if I collect the GPA of 100 university student I may want to what the average GPA of the students is. Seeking the average is one example of a descriptive question.

With descriptive questions, there is no need for a hypothesis as you are not trying to infer, establish a relationship, or generalize to a broader context. You simply want to know a trait of the dataset.

Exploratory/Inferential

Exploratory questions seek to identify things that may be “interesting” in the dataset. Examples of things that may be interesting include trends, patterns, and or relationships among variables.

Exploratory questions generate hypotheses. This means that they lead to something that may be more formal questioned and tested. For example, if you have GPA and hours of sleep for university students. You may explore the potential that there is a relationship between these two variables.



Inferential questions are an extension of exploratory questions. What this means is that the exploratory question is formally tested by developing an inferential question. Often, the difference between an exploratory and inferential question is the following

  1. Exploratory questions are usually developed first
  2. Exploratory questions generate inferential questions
  3. Inferential questions are tested often on a different dataset from exploratory questions

In our example, if we find a relationship between GPA and sleep in our dataset. We may test this relationship in a different, perhaps larger dataset. If the relationship holds we can then generalize this to the population of the study.

Causal

Causal questions address if a change in one variable directly affects another. In analytics, A/B testing is one form of data collection that can be used to develop causal questions. For example, we may develop two version of a website and see which one generates more sales.

In this example, the type of website is the independent variable and sales is the dependent variable. By controlling the type of website people see we can see if this affects sales.

Mechanistic

Mechanistic questions deal with how one variable affects another. This is different from causal questions that focus on if one variable affects another. Continuing with the website example, we may take a closer look at the two different websites and see what it was about them that made one more succesful in generating sales. It may be that one had more banners than another or fewer pictures. Perhaps there were different products offered on the home page.

All of these different features, of course, require data that helps to explain what is happening. This leads to an important point that the questions that can be asked are limited by the available data. You can’t answer a question that does not contain data that may answer it.

Conclusion

Answering questions is essential what research is about. In order to do this, you have to know what your questions are. This information will help you to decide on the analysis you wish to conduct. Familiarity with the types of research questions that are common in data science can help you to approach and complete analysis much faster than when this is unclear

Regularized Linear Regression

Traditional linear regression has been a tried and true model for making predictions for decades. However, with the growth of Big Data and datasets with 100’s of variables problems have begun to arise. For example, using stepwise or best subset method with regression could take hours if not days to converge in even some of the best computers.

To deal with this problem, regularized regression has been developed to help to determine which features or variables to keep when developing models from large datasets with a huge number of variables. In this post, we will look at the following concepts

  • Definition of regularized regression
  • Ridge regression
  • Lasso regression
  • Elastic net regression

Regularization

Regularization involves the use of a shrinkage penalty in order to reduce the residual sum of squares (RSS). This is done by selecting a value for a tuning parameter called “lambda”. Tuning parameters are used in machine learning algorithms to control the behavior of the models that are developed.

The lambda is multiplied by the normalized coefficients of the model and added to the RSS. Below is an equation of what was just said

RSS + λ(normalized coefficients)

The benefits of regularization are at least three-fold. First, regularization is highly computationally efficient. Instead of fitting k-1 models when k is the number of variables available (for example, 50 variables would lead 49 models!), with regularization only one model is developed for each value of lambda you specify.

Second, regularization helps to deal with the bias-variance headache of model development. When small changes are made to data, such as switching from the training to testing data, there can be wild changes in the estimates. Regularization can often smooth this problem out substantially.

Finally, regularization can help to reduce or eliminate any multicollinearity in a model. As such, the benefits of using regularization make it clear that this should be considered when working with larger datasets.

Ridge Regression

Ridge regression involves the normalization of the squared weights or as shown in the equation below

RSS + λ(normalized coefficients^2)

This is also referred to as the L2-norm. As lambda increase in value, the coefficients in the model are shrunk towards 0 but never reach 0. This is how the error is shrunk. The higher the lambda the lower the value of the coefficients as they are reduced more and more thus reducing the RSS.

The benefit is that predictive accuracy is often increased. However, interpreting and communicating your results can become difficult because no variables are removed from the model. Instead, the variables are reduced near to zero. This can be especially tough if you have dozens of variables remaining in your model to try to explain.

Lasso

Lasso is short for “Least Absolute Shrinkage and Selection Operator”. This approach uses the L1-norm which is the sum of the absolute value of the coefficients or as shown in the equation below

RSS + λ(Σ|normalized coefficients|)

This shrinkage penalty will reduce a coefficient to 0 which is another way of saying that variables will be removed from the model. One problem is that highly correlated variables that need to be in your model may be removed when Lasso shrinks coefficients. This is one reason why ridge regression is still used.

Elastic Net

Elastic net is the best of ridge and Lasso without the weaknesses of either. It combines extracts variables like Lasso and Ridge does not while also group variables like Ridge does but Lasso does not.

This is done by including a second tuning parameter called “alpha”. If alpha is set to 0 it is the same as ridge regression and if alpha is set to 1 it is the same as lasso regression. If you are able to appreciate it below is the formula used for elastic net regression

(RSS + l[(1 – alpha)(S|normalized coefficients|2)/2 + alpha(S|normalized coefficients|)])/N)

As such when working with elastic net you have to set two different tuning parameters (alpha and lambda) in order to develop a model.

Conclusion

Regularized regression was developed as an answer to the growth in the size and number of variables in a data set today. Ridge, lasso an elastic net all provide solutions to converging over large datasets and selecting features.

Data Wrangling in R

Collecting and preparing data for analysis is the primary job of a data scientist. This experience is called data wrangling. In this post, we will look at an example of data wrangling using a simple artificial data set. You can create the table below in r or excel. If you created it in excel just save it as a csv and load it into r. Below is the initial code

library(readr)
apple <- read_csv("~/Desktop/apple.csv")
## # A tibble: 10 × 2
##        weight      location
##
## 1         3.2        Europe
## 2       4.2kg       europee
## 3      1.3 kg          U.S.
## 4  7200 grams           USA
## 5          42 United States
## 6         2.3       europee
## 7       2.1kg        Europe
## 8       3.1kg           USA
## 9  2700 grams          U.S.
## 10         24 United States

This a small dataset with the columns of “weight” and “location”. Here are some of the problems

  • Weights are in different units
  • Weights are written in different ways
  • Location is not consistent

In order to have any success with data wrangling, you need to state specifically what it is you want to do. Here are our goals for this project

  • Convert the “Weight variable” to a numerical variable instead of character
  • Remove the text and have only numbers in the “weight variable”
  • Change weights in grams to kilograms
  • Convert the “location” variable to a factor variable instead of character
  • Have consistent spelling for Europe and United States in the “location” variable

We will begin with the “weight” variable. We want to convert it to a numerical variable and remove any non-numerical text. Below is the code for this

corrected.weight<-as.numeric(gsub(pattern = "[[:alpha:]]","",apple$weight))
corrected.weight
##  [1]    3.2    4.2    1.3 7200.0   42.0    2.3    2.1    3.1 2700.0   24.0

Here is what we did.

  1. We created a variable called “corrected.weight”
  2. We use the function “as.numeric” this makes whatever results inside it to be a numerical variable
  3. Inside “as.numeric” we used the “gsub” function which allows us to substitute one value for another.
  4. Inside “gsub” we used the argument pattern and set it to “[[alpha:]]” and “” this told r to look for any lower or uppercase letters and replace with nothing or remove it. This all pertains to the “weight” variable in the apple dataframe.

We now need to convert the weights into grams to kilograms so that everything is the same unit. Below is the code

gram.error<-grep(pattern = "[[:digit:]]{4}",apple$weight)
corrected.weight[gram.error]<-corrected.weight[gram.error]/1000
corrected.weight
##  [1]  3.2  4.2  1.3  7.2 42.0  2.3  2.1  3.1  2.7 24.0

Here is what we did

  1. We created a variable called “gram.error”
  2. We used the grep function to search are the “weight” variable in the apple data frame for input that is a digit and is 4 digits in length this is what the “[[:digit:]]{4}” argument means. We do not change any values yet we just store them in “gram.error”
  3. Once this information is stored in “gram.error” we use it as a subset for the “corrected.weight” variable.
  4. We tell r to save into the “corrected.weight” variable any value that is changeable according to the criteria set in “gram.error” and to divide it by 1000. Dividing it by 1000 converts the value from grams to kilograms.

We have completed the transformation of the “weight” and will move to dealing with the problems with the “location” variable in the “apple” dataframe. To do this we will first deal with the issues related to the values that relate to Europe and then we will deal with values related to the United States. Below is the code.

europe<-agrep(pattern = "europe",apple$location,ignore.case = T,max.distance = list(insertion=c(1),deletions=c(2)))
america<-agrep(pattern = "us",apple$location,ignore.case = T,max.distance = list(insertion=c(0),deletions=c(2),substitutions=0))
corrected.location<-apple$location
corrected.location[europe]<-"europe"
corrected.location[america]<-"US"
corrected.location<-gsub(pattern = "United States","US",corrected.location)
corrected.location
##  [1] "europe" "europe" "US"     "US"     "US"     "europe" "europe"
##  [8] "US"     "US"     "US"

The code is a little complicated to explain but in short We used the “agrep” function to tell r to search the “location” to look for values similar to our term “europe”. The other arguments provide some exceptions that r should change because the exceptions are close to the term europe. This process is repeated for the term “us”. We then store are the location variable from the “apple” dataframe in a new variable called “corrected.location” We then apply the two objects we made called “europe” and “america” to the “corrected.location” variable. Next, we have to make some code to deal with “United States” and apply this using the “gsub” function.

We are almost done, now we combine are two variables “corrected.weight” and “corrected.location” into a new data.frame. The code is below

cleaned.apple<-data.frame(corrected.weight,corrected.location)
names(cleaned.apple)<-c('weight','location')
cleaned.apple
##    weight location
## 1     3.2   europe
## 2     4.2   europe
## 3     1.3       US
## 4     7.2       US
## 5    42.0       US
## 6     2.3   europe
## 7     2.1   europe
## 8     3.1       US
## 9     2.7       US
## 10   24.0       US

If you use the “str” function on the “cleaned.apple” dataframe you will see that “location” was automatically converted to a factor.

This looks much better especially if you compare it to the original dataframe that is printed at the top of this post.

Making Regression and Modal Trees in R

In this post, we will look at an example of regression trees. Regression trees use decision tree-like approach to develop prediction models involving numerical data. In our example, we will be trying to predict how many kids a person has based on several independent variables in the “PSID” data set in the “Ecdat” package.

Let’s begin by loading the necessary packages and data set. The code is below

library(Ecdat);library(rpart);library(rpart.plot)
library(RWeka)
data(PSID)
str(PSID)
## 'data.frame':    4856 obs. of  8 variables:
##  $ intnum  : int  4 4 4 4 5 6 6 7 7 7 ...
##  $ persnum : int  4 6 7 173 2 4 172 4 170 171 ...
##  $ age     : int  39 35 33 39 47 44 38 38 39 37 ...
##  $ educatn : int  12 12 12 10 9 12 16 9 12 11 ...
##  $ earnings: int  77250 12000 8000 15000 6500 6500 7000 5000 21000 0 ...
##  $ hours   : int  2940 2040 693 1904 1683 2024 1144 2080 2575 0 ...
##  $ kids    : int  2 2 1 2 5 2 3 4 3 5 ...
##  $ married : Factor w/ 7 levels "married","never married",..: 1 4 1 1 1 1 1 4 1 1 ...
summary(PSID)
##      intnum        persnum            age           educatn
##  Min.   :   4   Min.   :  1.00   Min.   :30.00   Min.   : 0.00
##  1st Qu.:1905   1st Qu.:  2.00   1st Qu.:34.00   1st Qu.:12.00
##  Median :5464   Median :  4.00   Median :38.00   Median :12.00
##  Mean   :4598   Mean   : 59.21   Mean   :38.46   Mean   :16.38
##  3rd Qu.:6655   3rd Qu.:170.00   3rd Qu.:43.00   3rd Qu.:14.00
##  Max.   :9306   Max.   :205.00   Max.   :50.00   Max.   :99.00
##                                                  NA's   :1
##     earnings          hours           kids                 married
##  Min.   :     0   Min.   :   0   Min.   : 0.000   married      :3071
##  1st Qu.:    85   1st Qu.:  32   1st Qu.: 1.000   never married: 681
##  Median : 11000   Median :1517   Median : 2.000   widowed      :  90
##  Mean   : 14245   Mean   :1235   Mean   : 4.481   divorced     : 645
##  3rd Qu.: 22000   3rd Qu.:2000   3rd Qu.: 3.000   separated    : 317
##  Max.   :240000   Max.   :5160   Max.   :99.000   NA/DF        :   9
##                                                   no histories :  43

The variables “intnum” and “persnum” are for identification and are useless for our analysis. We will now explore our dataset with the following code.

hist(PSID$age)


hist(PSID$educatn)


hist(PSID$earnings)

Rplot02

hist(PSID$hours)

Rplot03

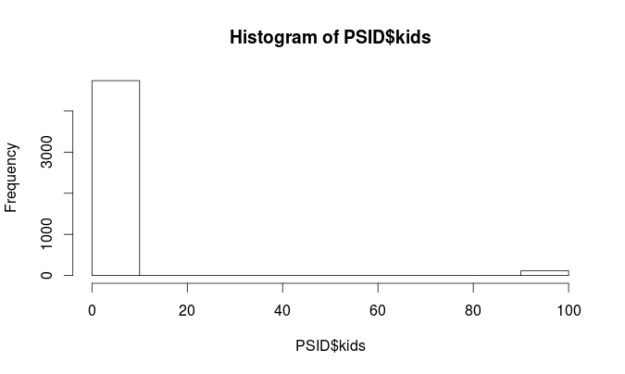

hist(PSID$kids)

Rplot04

table(PSID$married)
##
##       married never married       widowed      divorced     separated
##          3071           681            90           645           317
##         NA/DF  no histories
##             9            43

Almost all of the variables are non-normal. However, this is not a problem when using regression trees. There are some major problems with the “kids” and “educatn” variables. Each of these variables has values at 98 and 99. When the data for this survey was collected 98 meant the respondent did not know the answer and a 99 means they did not want to say. Since both of these variables are numerical we have to do something with them so they do not ruin our analysis.

We are going to recode all values equal to or greater than 98 as 3 for the “kids” variable. The number 3 means they have 3 kids. This number was picked because it was the most common response for the other respondents. For the “educatn” variable all values equal to or greater than 98 are recoded as 12, which means that they completed 12th grade. Again this was the most frequent response. Below is the code.

PSID$kids[PSID$kids >= 98] <- 3
PSID$educatn[PSID$educatn >= 98] <- 12

Another peek at the histograms for these two variables and things look much better.

hist(PSID$kids)


hist(PSID$educatn)

Rplot01

Make Model and Visualization

Now that everything is cleaned up we now need to make our training and testing data sets as seen in the code below.

PSID_train<-PSID[1:3642,]
PSID_test<-PSID[3643:4856,]

We will now make our model and also create a visual of it. Our goal is to predict the number of children a person has based on their age, education, earnings, hours worked, marital status. Below is the code

#make model
PSID_Model<-rpart(kids~age+educatn+earnings+hours+married, PSID_train)
#make visualization
rpart.plot(PSID_Model, digits=3, fallen.leaves = TRUE,type = 3, extra=101)

Rplot07

The first split on the tree is by income. On the left, we have those who make more than 20k and on the right those who make less than 20k. On the left the next split is by marriage, those who are never married or not applicable have on average 0.74 kids. Those who are married, widowed, divorced, separated, or have no history have on average 1.72.

The left side of the tree is much more complicated and I will not explain all of it. The after making less than 20k the next split is by marriage. Those who are married, widowed, divorced, separated, or no history with less than 13.5 years of education have 2.46 on average.

Make Prediction Model and Conduct Evaluation

Our next task is to make the prediction model. We will do this with the following code

PSID_pred<-predict(PSID_Model, PSID_test)

We will now evaluate the model. We will do this three different ways. The first involves looking at the summary statistics of the prediction model and the testing data. The numbers should be about the same. After that, we will calculate the correlation between the prediction model and the testing data. Lastly, we will use a technique called the mean absolute error. Below is the code for the summary statistics and correlation.

summary(PSID_pred)
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##   0.735   2.041   2.463   2.226   2.463   2.699
summary(PSID_test$kids)
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##   0.000   2.000   2.000   2.494   3.000  10.000
cor(PSID_pred, PSID_test$kids)
## [1] 0.308116

Looking at the summary stats our model has a hard time predicting extreme values because the max value of the two models are far apart. However, how often do people have ten kids? As such, this is not a major concern.

A look at the correlation finds that it is pretty low (0.30) this means that the two models have little in common and this means we need to make some changes. The mean absolute error is a measure of the difference between the predicted and actual values in a model. We need to make a function first before we analyze our model.

MAE<-function(actual, predicted){
        mean(abs(actual-predicted))
}

We now assess the model with the code below

MAE(PSID_pred, PSID_test$kids)
## [1] 1.134968

The results indicate that on average the difference between our model’s prediction of the number of kids and the actual number of kids was 1.13 on a scale of 0 – 10. That’s a lot of error. However, we need to compare this number to how well the mean does to give us a benchmark. The code is below.

ave_kids<-mean(PSID_train$kids)
MAE(ave_kids, PSID_test$kids)
## [1] 1.178909

Model Tree

Our model with a score of 1.13 is slightly better than using the mean which is 1.17. We will try to improve our model by switching from a regression tree to a model tree which uses a slightly different approach for prediction. In a model tree each node in the tree ends in a linear regression model. Below is the code.

PSIDM5<- M5P(kids~age+educatn+earnings+hours+married, PSID_train)
PSIDM5
## M5 pruned model tree:
## (using smoothed linear models)
##
## earnings <= 20754 :
## |   earnings <= 2272 :
## |   |   educatn <= 12.5 : LM1 (702/111.555%) ## |   |   educatn >  12.5 : LM2 (283/92%)
## |   earnings >  2272 : LM3 (1509/88.566%)
## earnings >  20754 : LM4 (1147/82.329%)
##
## LM num: 1
## kids =
##  0.0385 * age
##  + 0.0308 * educatn
##  - 0 * earnings
##  - 0 * hours
##  + 0.0187 * married=married,divorced,widowed,separated,no histories
##  + 0.2986 * married=divorced,widowed,separated,no histories
##  + 0.0082 * married=widowed,separated,no histories
##  + 0.0017 * married=separated,no histories
##  + 0.7181
##
## LM num: 2
## kids =
##  0.002 * age
##  - 0.0028 * educatn
##  + 0.0002 * earnings
##  - 0 * hours
##  + 0.7854 * married=married,divorced,widowed,separated,no histories
##  - 0.3437 * married=divorced,widowed,separated,no histories
##  + 0.0154 * married=widowed,separated,no histories
##  + 0.0017 * married=separated,no histories
##  + 1.4075
##
## LM num: 3
## kids =
##  0.0305 * age
##  - 0.1362 * educatn
##  - 0 * earnings
##  - 0 * hours
##  + 0.9028 * married=married,divorced,widowed,separated,no histories
##  + 0.2151 * married=widowed,separated,no histories
##  + 0.0017 * married=separated,no histories
##  + 2.0218
##
## LM num: 4
## kids =
##  0.0393 * age
##  - 0.0658 * educatn
##  - 0 * earnings
##  - 0 * hours
##  + 0.8845 * married=married,divorced,widowed,separated,no histories
##  + 0.3666 * married=widowed,separated,no histories
##  + 0.0037 * married=separated,no histories
##  + 0.4712
##
## Number of Rules : 4

It would take too much time to explain everything. You can read part of this model as follows earnings greater than 20754 use linear model 4earnings less than 20754 and less than 2272 and less than 12.5 years of education use linear model 1 earnings less than 20754 and less than 2272 and greater than 12.5 years of education use linear model 2 earnings less than 20754 and greater than 2272 linear model 3 The print out then shows each of the linear model. Lastly, we will evaluate our model tree with the following code

PSIDM5_Pred<-predict(PSIDM5, PSID_test)
summary(PSIDM5_Pred)
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##  0.3654  2.0490  2.3400  2.3370  2.6860  4.4220
cor(PSIDM5_Pred, PSID_test$kids)
## [1] 0.3486492
MAE(PSID_test$kids, PSIDM5_Pred)
## [1] 1.088617

This model is slightly better. For example, it is better at predict extreme values at 4.4 compare to 2.69 for the regression tree model. The correlation is 0.34 which is better than 0.30 for the regression tree model. Lastly. the mean absolute error shows a slight improve to 1.08 compared to 1.13 in the regression tree model

Conclusion

This provide examples of the use of regression trees and model trees. Both of these models make prediction a key component of their analysis.

Numeric Prediction Trees

Decision trees are used for classifying examples into distinct classes or categories. Such as pass/fail, win/lose, buy/sell/trade, etc. However, as we all know, categories are just one form of outcome in machine learning. Sometimes we want to make numeric predictions.

The use of trees in making predictions numeric involves the use of regression trees or model trees. In this post, we will look at each of these forms of numeric prediction with the use of trees.

Regression Trees and Modal Trees

Regression trees have been around since the 1980’s. They work by predicting the average value of specific examples that reach a given leaf in the tree. Despite their name, there is no regression involved with regression trees. Regression trees are straightforward to interpret but at the expense of accuracy.

Modal trees are similar to regression trees but employ multiple regression with the examples at each leaf in a tree. This leads to many different regression models being used to split the data throughout a tree. This makes model trees hard to interpret and understand in comparison to regression trees. However, they are normally much more accurate than regression trees.

Both types of trees have the goal of making groups that are as homogeneous as possible. For decision trees, entropy is used to measure the homogeneity of groups. For numeric decision trees, the standard deviation reduction (SDR) is used. The detail of SDR are somewhat complex and technical and will be avoided for that reason.

Strengths of Numeric Prediction Trees

Numeric prediction trees do not have the assumptions of linear regression. As such, they can be used to model non-normal and or non-linear data. In addition, if a dataset has a large number of feature variables, a numeric prediction tree can easily select the most appropriate ones automatically. Lastly, numeric prediction trees also do not need the model to be specific in advance of the analysis.

Weaknesses of Numeric Prediction Trees

This form of analysis requires a large amount of data in the training set in order to develop a testable model. It is also hard to tell which variables are most important in shaping the outcome. Lastly, sometimes numeric prediction trees are hard to interpret. This naturally limits there usefulness among people who lack statistical training.

Conclusion

Numeric prediction trees combine the strength of decision trees with the ability to digest a large amount of numerical variables. This form of machine learning is useful when trying to rate or measure something that is very difficult to rate or measure. However, when possible, it is usually wise to allow to try to use simpler methods if permissible.

Making a Decision Tree in R

In this post, we are going to learn how to use the C5.0 algorithm to make a classification tree in order to make predictions about gender based on wage, education, and job experience using a data set in the “Ecdat” package in R. Below is some code to get started.

library(Ecdat); library(C50); library(gmodels)
 data(Wages1)

We now will explore the data to get a sense of what is happening in it. Below is the code for this

str(Wages1)
 ## 'data.frame': 3294 obs. of 4 variables:
 ## $ exper : int 9 12 11 9 8 9 8 10 12 7 ...
 ## $ sex : Factor w/ 2 levels "female","male": 1 1 1 1 1 1 1 1 1 1 ...
 ## $ school: int 13 12 11 14 14 14 12 12 10 12 ...
 ## $ wage : num 6.32 5.48 3.64 4.59 2.42 ...
 hist(Wages1$exper)

Rplot02

summary(Wages1$exper)
 ## Min. 1st Qu. Median Mean 3rd Qu. Max.
 ## 1.000 7.000 8.000 8.043 9.000 18.000

hist(Wages1$wage)

Rplot

summary(Wages1$wage)
## Min. 1st Qu. Median Mean 3rd Qu. Max.
## 0.07656 3.62200 5.20600 5.75800 7.30500 39.81000

hist(Wages1$school)

Rplot01

summary(Wages1$school)
 ## Min. 1st Qu. Median Mean 3rd Qu. Max.
 ## 3.00 11.00 12.00 11.63 12.00 16.00

table(Wages1$sex)
## female male
## 1569 1725

As you can see, we have four features (exper, sex, school, wage) in the “Wages1” data set. The histogram for “exper” indicates that it is normally distributed. The “wage” feature is highly left-skewed and almost bimodal. This is not a big deal as classification trees are robust against non-normality. The ‘school’ feature is mostly normally distributed. Lastly, the ‘sex’ feature is categorical but there is almost an equal number of men and women in the data. All of the outputs for the means are listed above.

Create Training and Testing Sets

We now need to create our training and testing data sets. In order to do this, we need to first randomly reorder our data set. For example, if the data is sorted by one of the features, to split it now would lead to extreme values all being lumped together in one data set.

To make things more confusing, we also need to set our seed. This allows us to be able to replicate our results. Below is the code for doing this.

set.seed(12345)
 Wage_rand<-Wages1[order(runif(3294)),]

What we did is explained as follows

  1. set the seed using the ‘set.seed’ function (We randomly picked the number 12345)
  2. We created the variable ‘Wage_rand’ and we assigned the following
  3. From the ‘Wages1’ dataset we used the ‘runif’ function to create a list of 3294 numbers (1-3294) we did this because there are a total of 3294 examples in the dataset.
  4. After generating the 3294 numbers we then order sequentially using the “order” function.
  5. We then assigned each example in the “Wages1” dataset one of the numbers we created

We will now create are training and testing set using the code below.

Wage_train<-Wage_rand[1:2294,]
 Wage_test<-Wage_rand[2295:3294,]

Make the Model
We can now begin training a model below is the code.

Wage_model<-C5.0(Wage_train[-2], Wage_train$sex)

The coding for making the model should be familiar by now. One thing that is new is the brackets with the -2 inside. This tells r to ignore the second column in the dataset. We are doing this because we want to predict sex. If it is a part of the independent variables we cannot predict it. We can now examine the results of our model by using the following code.

Wage_model
##
## Call:
## C5.0.default(x = Wage_train[-2], y = Wage_train$sex)
##
## Classification Tree
## Number of samples: 2294
## Number of predictors: 3
##
## Tree size: 9
##
## Non-standard options: attempt to group attributes
summary(Wage_model)
##
## Call:
## C5.0.default(x = Wage_train[-2], y = Wage_train$sex)
##
##
## C5.0 [Release 2.07 GPL Edition] Wed May 25 10:55:22 2016
## ——————————-
##
## Class specified by attribute `outcome’
##
## Read 2294 cases (4 attributes) from undefined.data
##
## Decision tree:
##
## wage <= 3.985179: ## :…school > 11: female (345/109)
## : school <= 11:
## : :…exper <= 8: female (224/96) ## : exper > 8: male (143/59)
## wage > 3.985179:
## :…wage > 9.478313: male (254/61)
## wage <= 9.478313: ## :…school > 12: female (320/132)
## school <= 12:
## :…school <= 10: male (246/70) ## school > 10:
## :…school <= 11: male (265/114) ## school > 11:
## :…exper <= 6: female (83/35) ## exper > 6: male (414/173)
##
##
## Evaluation on training data (2294 cases):
##
## Decision Tree
## —————-
## Size Errors
##
## 9 849(37.0%) <<
##
##
## (a) (b) ## —- —-
## 600 477 (a): class female
## 372 845 (b): class male
##
##
## Attribute usage:
##
## 100.00% wage
## 88.93% school
## 37.66% exper
##
##
## Time: 0.0 secs

The “Wage_model” indicates a small decision tree of only 9 decisions. The “summary” function shows the actual decision tree. It’s somewhat complicated but I will explain the beginning part of the tree.

If wages are less than or equal to 3.98 then the person is female THEN

If the school is greater than 11 then the person is female ELSE

If the school is less than or equal to 11 THEN

If The experience of the person is less than or equal to 8 the person is female ELSE

If the experience is greater than 8 the person is male etc.

The next part of the output shows the amount of error. This model misclassified 37% of the examples which is pretty high. 477 men were misclassified as women and 372 women were misclassified as men.

Predict with the Model

We will now see how well this model predicts gender in the testing set. Below is the code

Wage_pred<-predict(Wage_model, Wage_test)

CrossTable(Wage_test$sex, Wage_pred, prop.c = FALSE,
 prop.r = FALSE, dnn=c('actual sex', 'predicted sex'))

The output will not display properly here. Please see C50 for a pdf of this post and go to page 7

Again, this code should be mostly familiar for the prediction model. For the table, we are comparing the test set sex with predicted sex. The overall model was correct 269 + 346/1000 for 61.5% accuracy rate, which is pretty bad.

Improve the Model

There are two ways we are going to try and improve our model. The first is adaptive boosting and the second is error cost.

Adaptive boosting involves making several models that “vote” how to classify an example. To do this you need to add the ‘trials’ parameter to the code. The ‘trial’ parameter sets the upper limit of the number of models R will iterate if necessary. Below is the code for this and the code for the results.

Wage_boost10<-C5.0(Wage_train[-2], Wage_train$sex, trials = 10)
 #view boosted model
 summary(Wage_boost10)
 ##
 ## Call:
 ## C5.0.default(x = Wage_train[-2], y = Wage_train$sex, trials = 10)
 ##
 ##
 ## C5.0 [Release 2.07 GPL Edition] Wed May 25 10:55:22 2016
 ## -------------------------------
 ##
 ## Class specified by attribute `outcome'
 ##
 ## Read 2294 cases (4 attributes) from undefined.data
 ##
 ## ----- Trial 0: -----
 ##
 ## Decision tree:
 ##
 ## wage <= 3.985179: ## :...school > 11: female (345/109)
 ## : school <= 11:
 ## : :...exper <= 8: female (224/96) ## : exper > 8: male (143/59)
 ## wage > 3.985179:
 ## :...wage > 9.478313: male (254/61)
 ## wage <= 9.478313: ## :...school > 12: female (320/132)
 ## school <= 12:
 ## :...school <= 10: male (246/70) ## school > 10:
 ## :...school <= 11: male (265/114) ## school > 11:
 ## :...exper <= 6: female (83/35) ## exper > 6: male (414/173)
 ##
 ## ----- Trial 1: -----
 ##
 ## Decision tree:
 ##
 ## wage > 6.848846: male (663.6/245)
 ## wage <= 6.848846:
 ## :...school <= 10: male (413.9/175) ## school > 10: female (1216.5/537.6)
 ##
 ## ----- Trial 2: -----
 ##
 ## Decision tree:
 ##
 ## wage <= 3.234474: female (458.1/192.9) ## wage > 3.234474: male (1835.9/826.2)
 ##
 ## ----- Trial 3: -----
 ##
 ## Decision tree:
 ##
 ## wage > 9.478313: male (234.8/82.1)
 ## wage <= 9.478313:
 ## :...school <= 11: male (883.2/417.8) ## school > 11: female (1175.9/545.1)
 ##
 ## ----- Trial 4: -----
 ##
 ## Decision tree:
 ## male (2294/1128.1)
 ##
 ## *** boosting reduced to 4 trials since last classifier is very inaccurate
 ##
 ##
 ## Evaluation on training data (2294 cases):
 ##
 ## Trial Decision Tree
 ## ----- ----------------
 ## Size Errors
 ##
 ## 0 9 849(37.0%)
 ## 1 3 917(40.0%)
 ## 2 2 958(41.8%)
 ## 3 3 949(41.4%)
 ## boost 864(37.7%) <<
 ##
 ##
 ## (a) (b) ## ---- ----
 ## 507 570 (a): class female
 ## 294 923 (b): class male
 ##
 ##
 ## Attribute usage:
 ##
 ## 100.00% wage
 ## 88.93% school
 ## 37.66% exper
 ##
 ##
 ## Time: 0.0 secs

R only created 4 models as there was no additional improvement after this. You can see each model in the printout. The overall results are similar to our original model that was not boosted. We will now see how well our boosted model predicts with the code below.

Wage_boost_pred10<-predict(Wage_boost10, Wage_test)
 CrossTable(Wage_test$sex, Wage_boost_pred10, prop.c = FALSE,
 prop.r = FALSE, dnn=c('actual Sex Boost', 'predicted Sex Boost'))

Our boosted model has an accuracy rate 223+379/1000 = 60.2% which is about 1% better then our unboosted model (59.1%). As such, boosting the model was not useful (see page 11 of the pdf for the table printout.)

Our next effort will be through the use of a cost matrix. A cost matrix allows you to impose a penalty on false positives and negatives at your discretion. This is useful if certain mistakes are too costly for the learner to make. IN our example, we are going to make it 4 times more costly misclassify a female as a male (false negative) and 1 times for costly to misclassify a male as a female (false positive). Below is the code

error_cost Wage_cost<-C5.0(Wage_train[-21], Wage_train$sex, cost = error_cost)
 Wage_cost_pred<-predict(Wage_cost, Wage_test)
 CrossTable(Wage_test$sex, Wage_cost_pred, prop.c = FALSE,
 prop.r = FALSE, dnn=c('actual Sex EC', 'predicted Sex EC'))

With this small change our model is 100% accurate (see page 12 of the pdf).

Conclusion

This post provided an example of decision trees. Such a model allows someone to predict a given outcome when given specific information.

Understanding Decision Trees

Decision trees are yet another method of machine learning that is used for classifying outcomes. Decision trees are very useful for, as you can guess, making decisions based on the characteristics of the data.

In this post, we will discuss the following

  • Physical traits of decision trees
  • How decision trees work
  • Pros and cons of decision trees

Physical Traits of a Decision Tree

Decision trees consist of what is called a tree structure. The tree structure consists of a root node, decision nodes, branches and leaf nodes.

A root node is an initial decision made in the tree. This depends on which feature the algorithm selects first.

Following the root node, the tree splits into various branches. Each branch leads to an additional decision node where the data is further subdivided. When you reach the bottom of a tree at the terminal node(s) these are also called leaf nodes.

How Decision Trees Work

Decision trees use a heuristic called recursive partitioning. What this does is it splits the overall dataset into smaller and smaller subsets until each subset is as close to pure (having the same characteristics) as possible. This process is also known as divide and conquer.

The mathematics for deciding how to split the data is based on an equation called entropy, which measures the purity of a potential decision node. The lower the entropy scores the purer the decision node is. The entropy can range from 0 (most pure) to 1 (most impure).

One of the most popular algorithms for developing decision trees is the C5.0 algorithm. This algorithm, in particular, uses entropy to assess potential decision nodes.

Pros and Cons

The prose of decision trees includes its versatile nature. Decision trees can deal with all types of data as well as missing data. Furthermore, this approach learns automatically and only uses the most important features. Lastly, a deep understanding of mathematics is not necessary to use this method in comparison to more complex models.

Some problems with decision trees are that they can easily overfit the data. This means that the tree does not generalize well to other datasets. In addition, a large complex tree can be hard to interpret, which may be yet another indication of overfitting.

Conclusion

Decision trees provide another vehicle that researchers can use to empower decision making. This model is most useful particularly when a decision that was made needs to be explained and defended. For example, when rejecting a person’s loan application. Complex models made provide stronger mathematical reasons but would be difficult to explain to an irate customer.

Therefore, for complex calculation presented in an easy to follow format. Decision trees are one possibility.

Conditional Probability & Bayes’ Theorem

In a prior post, we look at some of the basics of probability. The prior forms of probability we looked at focused on independent events, which are events that are unrelated to each other.

In this post, we will look at conditional probability which involves calculating probabilities for events that are dependent on each other. We will understand conditional probability through the use of Bayes’ theorem.

Conditional Probability

If all events were independent of it would be impossible to predict anything because there would be no relationships between features. However, there are many examples of on event affecting another. For example, thunder and lighting can be used to predictors of rain and lack of study can be used as a predictor of test performance.

Thomas Bayes develop a theorem to understand conditional probability. A theorem is a statement that can be proven true through the use of math. Bayes’ theorem is written as follows

P(A | B)

This complex notation simply means

The probability of event A given event B occurs

Calculating probabilities using Bayes’ theorem can be somewhat confusing when done by hand. There are a few terms however that you need to be exposed too.

  • prior probability is the probability of an event without a conditional event
  • likelihood is the probability of a given event
  • posterior probability is the probability of an event given that another event occurred. the calculation or posterior probability is the application of Bayes’ theorem

Naive Bayes Algorithm

Bayes’ theorem has been used to develop the Naive Bayes Algorithm. This algorithm is particularly useful in classifying text data, such as emails. This algorithm is fast, good with missing data, and powerful with large or small data sets. However, naive Bayes struggles with large amounts of numeric data and it has a problem with assuming that all features are of equal value, which is rarely the case.

Conclusion

Probability is a core component of prediction. However, prediction cannot truly take place with events being dependent. Thanks to the work of Thomas Bayes, we have one approach to making prediction through the use of his theorem.

In a future post, we will use naive Bayes algorithm to make predictions about text.

Characteristics of Big Data

In a previous post, we talked about types of Big Data. However, another way to look at big data and define it is by looking at the characteristics of Big Data. In other words, what helps to identify makes Big Data as data that is big.

This post will explain the 6 main characteristics of Big Data. These characteristics are often known as the V’s of Big Data. They are as follows

  • Volume
  • Variety
  • Velocity
  • Veracity
  • Valence
  • Value

Volume

Volume has to do with the size of the data. It is hard to comprehend how volume is measured in computer science when it comes to memory for many people. Most of the computers that the average person uses works in the range of gigabytes. For example, a dvd will hold about 5 gigabytes of data.

It is now becoming more and more common to find people with terabytes of storage. A terabyte is 1,000 gigabytes! This is enough memory to hold 500 dvds worth of data. The next step up is petabytes which is 1000 terabytes or 5,000,000 dvds.

Big data involves data that is large as in the examples above. Such massive amounts of data called on new ways of analysis.

Variety

Variety is another term for complexity. Big data can be highly or lowly complex. There was a previous post about structured and unstructured data that we won’t repeat here. The point is that these various levels of complexity make analysis highly difficult because of the tremendous amount of data mugging or cleaning of the data that is often necessary.

Velocity

Velocity is the speed at which big data is created, stored, and or analyzed. Two approaches to processing data are batch and real-time. Batch processing involves collecting and cleaning the data in “batches” for processing. It is necessary to wait for all the “batches” to come in before making a decision. As such this is a slow process.

An alternative is real-team processing. This approach involves streaming the information into machines which process the data immediately.

The speed at which data needs to be processed is linked directly with the cost. As such, faster may not always be better or necessary.

Veracity

The quality of the data is what veracity is. If the data is no good the results are no good. The most reliable data tends to be collected companies and other forms of enterprise. The next lower level is social media data. Finally, the lowest level of data is often data that is captured by sensors. The differences between the levels is often the lack of discrimination.

Valence

Valence is a term that is used in chemistry and has to do with how an element has electrons available for bonding with other elements. This can lead to complex molecules due to elements being interconnected through sharing electrons.

In Big Data, valence is how interconnected the data is. As there are more and more connections among the data the complexity of the analysis increases.

Value

Value is the ability to convert Big Data information into a monetary reward. For example, if you find a relationship between two products at a point of sale, you can recommend them to customers at a website or put the products next to each in a store.

A lot of Big Data research is done with a motive of making money. However, there is a lot of Big Data research happening that is driven exclusively by a profit motive such as the research being used to analyze the human genome. As such, the “value” characteristic is not always included when talking about the characteristics of Big Data.

Conclusion

Understanding the traits of Big Data allows an individual to identify Big Data when they see it. The traits here are the common ones of Big Data. However, this list is far from exhaustive and there is much more that could be said.

Nearest Neighbor Classification

There are times when the relationships among examples you want to classify are messy and complicated. This makes it difficult to actually classify them. Yet in this same situation, items of the same class have a lot of features in common even though the overall sample is messy. In such a situation, nearest neighbor classification may be useful.

Nearest neighbor classification uses a simple technique to classify unlabeled examples. The algorithm assigns an unlabeled example the label of the nearest example. This based on the assumption that if two examples are next to each other they must be of the same class.

In this post, we will look at the characteristics of nearest neighbor classification as well as the strengths and weakness of this approach.

Characteristics

Nearest neighbor classification uses the features of the data set to create a multidimensional feature space. The number of features determines the number of dimensions. Therefore, two features leads to a two-dimensional feature space, three features leads to a three dimensional feature space, etc. In this feature space all the examples are placed based on their respective features.

The label of the unknown examples are determined by who the closet neighbor is or are. This calculation is based on Euclidean distance, which is the shortest distance possible. The number of neighbors that are used to calculate the distance varies at the discretion of the researcher. For example, we could use one neighbor or several to determine the label of an unlabeled example. There are pros and cons to how many neighbors to use. The more neighbors used the more complicated the classification becomes.

Nearest neighbor classification is considered a type of lazy learning. What is meant by lazy is that no abstraction of the data happens. This means there is no real explanation or theory provide by the model to understand why there are certain relationships. Nearest neighbor tells you where the relationships are but not why or how. This is partly due to the fact that it is a non-parametric learning method and provides no parameters (summary statistics) about the data.

Pros and Cons

Nearest neighbor classification has the advantage of being simple, highly effective, and fast during the training phase. There are also no assumptions made about the data distribution. This means that common problems like a lack of normality are not an issue.

Some problems include the lack of a model. This deprives us of insights into the relationships in the data. Another concern is the headache of missing data.  This forces you to spend time cleaning the data more thoroughly.  One final issue is that the classification phase of a project is slow and cumbersome because of the messy nature of the data.

Conclusion

Nearest neighbor classification is one useful tool in machine learning. This approach is valuable for times when the data is heterogeneous but with clear homogeneous groups in the data. In a future post, we will go through an example of this classification approach using R.

Steps for Approaching Data Science Analysis

Research is difficult for many reasons. One major challenge of research is knowing exactly what to do. You have to develop your way of approaching your problem, data collection and analysis that is acceptable to peers.

This level of freedom leads to people literally freezing and not completing a project. Now imagine have several gigabytes or terabytes of data and being expected to “analyze” it.

This is a daily problem in data science. In this post, we will look at one simply six step process to approaching data science. The process involves the following six steps

  1. Acquire data
  2. Explore the data
  3. Process the data
  4. Analyze the data
  5. Communicate the results
  6. Apply the results

Step 1 Acquire the Data

This may seem obvious but it needs to be said. The first step is to access data for further analysis. Not always, but often data scientist are given data that was already collected by others who want answers from it.

In contrast with traditional empirical research in which you are often involved from the beginning to the end, in data science you jump to analyze a mess of data that others collected. This is challenging as it may not be clear what people what to know are what exactly the collected.

Step 2 Explore the Data

Exploring the data allows you to see what is going on. You have to determine what kinds of potential feature variables you have, the level of data that was collected (nominal, ordinal, interval, ratio). In addition, exploration allows you to determine what you need to do to prep the data for analysis.

Since data can come in many different formats from structured to unstructured. It is critical to take a look at the data through using summary statistics and various visualization options such as plots and graphs.

Another purpose for exploring data is that it can provide insights into how to analyze the data. If you are not given specific instructions as to what stakeholders want to know, exploration can help you to determine what may be valuable for them to know.

Step 3 Process the Data

Processing data involves cleaning it. This involves dealing with missing data, transforming features, addressing outliers, and other necessary processes for preparing analysis. The primary goal is to organize the data for analysis

This is a critical step as various machine learning models have different assumptions that must be met. Some models can handle missing data some cannot. Some models are affected by outliers some are not.

Step 4 Analyze the Data

This is often the most enjoyable part of the process. At this step, you actually get to develop your model. How this is done depends on the type of model you selected.

In machine learning, analysis is almost never complete until some form of validation of the model takes place. This involves taking the model developed on one set of data and seeing how well the model predicts the results on another set of data. One of the greatest fears of statistical modeling is overfitting, which is a model that only works on one set of data and lacks the ability to generalize.

Step 5 Communicate Results

This step is self-explanatory. The results of your analysis needs to be shared with those involved. This is actually an art in data science called storytelling. It involves the use of visuals as well-spoken explanations.

Steps 6 Apply the Results

This is the chance to actual use the results of a study. Again, how this is done depends on the type of model developed. If a model was developed to predict which people to approve for home loans, then the model will be used to analyze applications by people interested in applying for a home loan.

Conclusion

The steps in this process is just one way to approach data science analysis. One thing to keep in mind is that these steps are iterative, which means that it is common to go back and forth and to skip steps as necessary. This process is just a guideline for those who need direction in doing an analysis.

The Types of Data in Big Data

A well-known quote in the business world is “cash is king.” Nothing will destroy a business faster than a lack of liquidity to meet a financial emergency. What your worth may not matter as much as what you can spend that makes a difference.

However, there is now a challenge to this mantra. In the world of data science, there is the belief that data is king. This can potentially make sense as using data to foresee financial disaster can help people to have cash ready.

In this post, we are going to examine the different types of data in the world of data science. Generally, there are two types of data which are unstructured and structured data.

Unstructured Data

Unstructured data is data that is produced by people. Normally, this data is text heavy. Examples of unstructured data include twits on Twitter, customer feedback on Amazon, blogs, emails, etc. This type of data is very challenging to work with because it is not necessarily in a format for analysis.

Despite the challenges, there are techniques available for using this information to make decisions. Often, the analysis of unstructured data is used to target products and make recommendations for purchases by companies.

Structured Data

Structured data is in many ways the complete opposite of unstructured data. Structured data has a clear format and a specific place for various pieces of data. An excel document is one example of structured data. A receipt is another example. A receipt has a specific place for different pieces of information such as price, total, date, etc. Often, structured data is made by organizations and machines.

Naturally, analyzing structured data is often much easier than unstructured data. With a consistent format, there is less processing required before analysis.

Working With Data

When approaching a project, data often comes from several sources. Normally, the data has to be moved around and consolidated into one space for analysis. When working with unstructured and or structured data that is coming from several different sources, there is a three-step process used to facilitate this. The process is called ETL which stands for extract, transform, and load.

Extracting data means taking it from one place and planning to move it somewhere else. Transform means changing the data in some way or another. For example, this often means organizing it for the purposes of answer research questions. How this is done is context specific.

Load simply means placing all the transformed data into one place for analysis. This is a critical last step as it is helpful to have what you are analyzing in one convenient place. The details of this will be addressed in a future post.

Conclusion

In what may be an interesting contradiction, as we collect more and more data, data is actually becoming more valuable. Normally, an increase in a resource lessens its value but not with data. Organizations are collecting data at a recording break in order to anticipate the behavior of people. This predictive power derived from data can lead to significant profits, which leads to the conclusion that perhaps data is now the king.
